Virtualization

Bare Metal to Cloud Strategy

Before we have Docker, we need a place to run it. I manage Type-1 Hypervisors (like Proxmox and ESXi) to slice physical hardware into efficient Virtual Machines. This is the foundation of private cloud infrastructure.

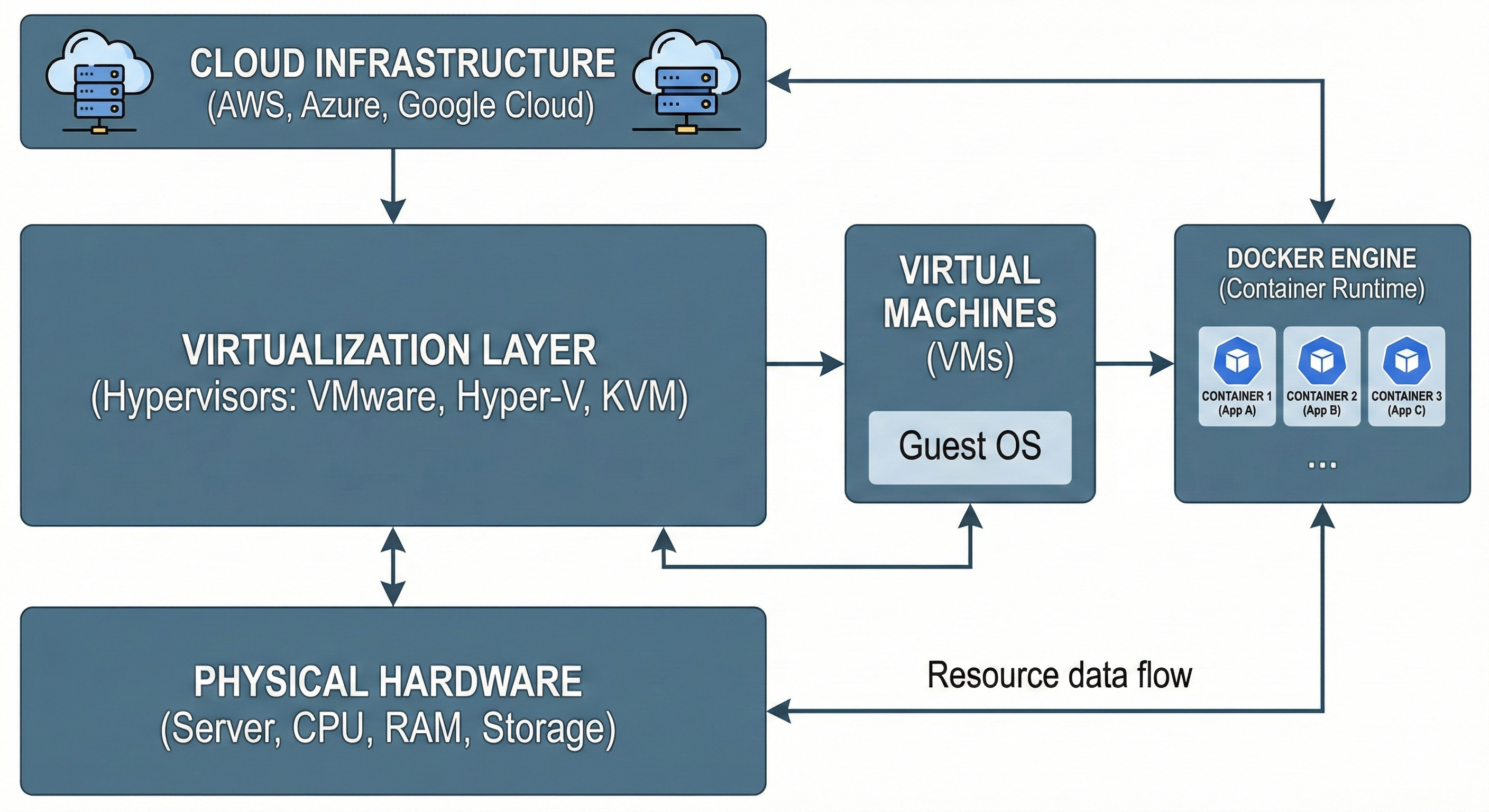

🏗️ The Stack: Hardware Server → Hypervisor (Proxmox/KVM) → Virtual Machine (Ubuntu) → Docker Engine.

Dashboard interface showing containerized services and real-time SSL status

Hypervisor Landscape

Proxmox VE

Open-source enterprise virtualization. My preferred choice for home labs and private clouds.

  • Debian-based
  • Supports LXC Containers
  • Web GUI included

VMware ESXi

The industry standard for large enterprises. Highly stable but expensive licensing.

  • Proprietary Kernel
  • vCenter Management
  • Corporate Standard

KVM (Linux)

Kernel-based Virtual Machine. This is what powers AWS and Google Cloud under the hood.

  • Built into Linux
  • Command-line focused
  • Maximum Performance

Step 1: Managing VMs via CLI

While GUIs are nice, efficient administration happens in the terminal. Here is how I manage resources using Proxmox CLI (`qm`) and KVM (`virsh`).

Proxmox Management (qm)

Creating and controlling VMs on a Proxmox host.

Proxmox Shell
# List all running VMs
qm list

# Stop a VM forcefully (VM ID 100)
qm stop 100

# Clone a template to create a new VM
qm clone 9000 101 --name docker-node-01

KVM/Virsh Commands

Direct interaction with the Linux Kernel hypervisor.

Linux Terminal
# Check list of VMs
virsh list --all

# Start a VM
virsh start ubuntu-server

# Edit VM configuration (XML)
virsh edit ubuntu-server

Connecting to Docker Infrastructure

Virtualization is the "Parent" of Docker. In a production environment, we don't run Docker on the bare metal hypervisor. We run it inside the VMs we just created.

1. Provision VM

Create a generic Ubuntu VM using Proxmox or KVM.

qm create 102 --name "docker-host" --memory 4096 --net0 virtio,bridge=vmbr0

2. Install Engine

SSH into the new VM and set up the container runtime.

ssh user@192.168.1.102
curl -fsSL https://get.docker.com | sh

⚡ Troubleshooting Virtual Resources

VM Won't Start (Resource Lock)

Sometimes a backup leaves a lock on the VM configuration.

qm unlock 100

Expand Disk Space

Increasing storage for a growing Docker registry.

qm resize 100 scsi0 +20G
# Then resize inside the VM OS
